类别：固装系列
简介： P6.25 indoor/outdoor led display is one of the widely used led display in the market now, usually applied in commercial ads, stadium, stage rental...... Features: 1. High definition 2. IP30 protection 3. frontmaintenancedesign 4. high cost performance, 30% cheaper. Indoor/OutdoorP6.25ledscreen Physicalpar...

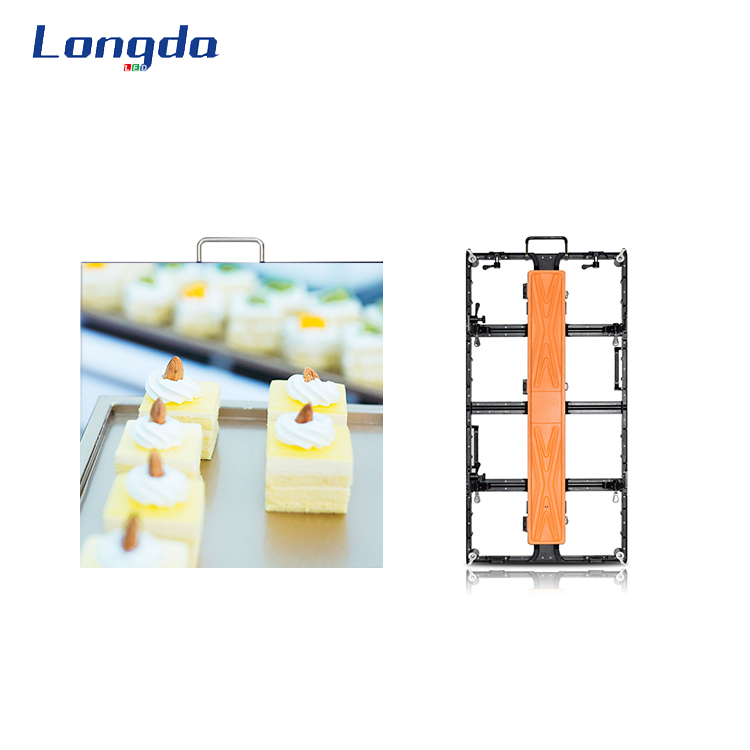

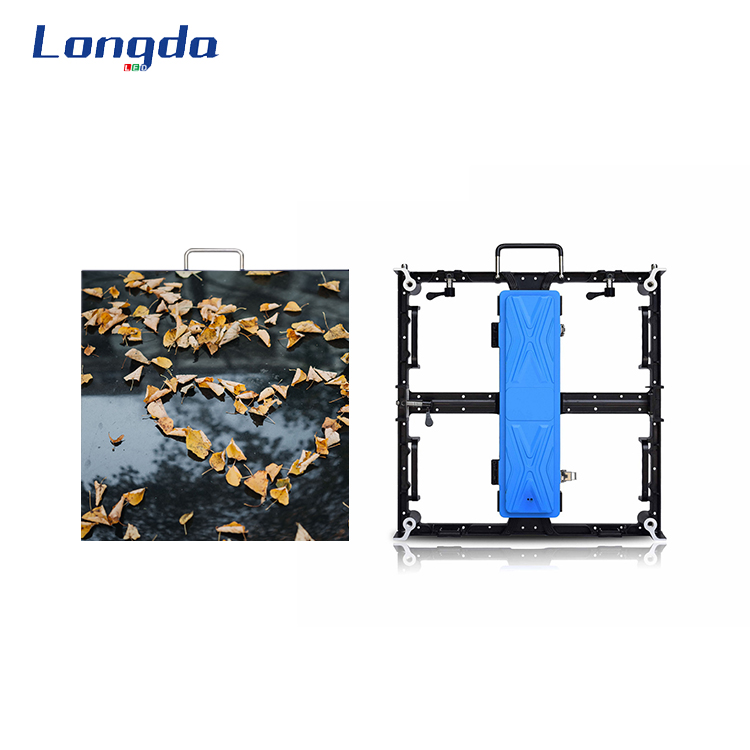

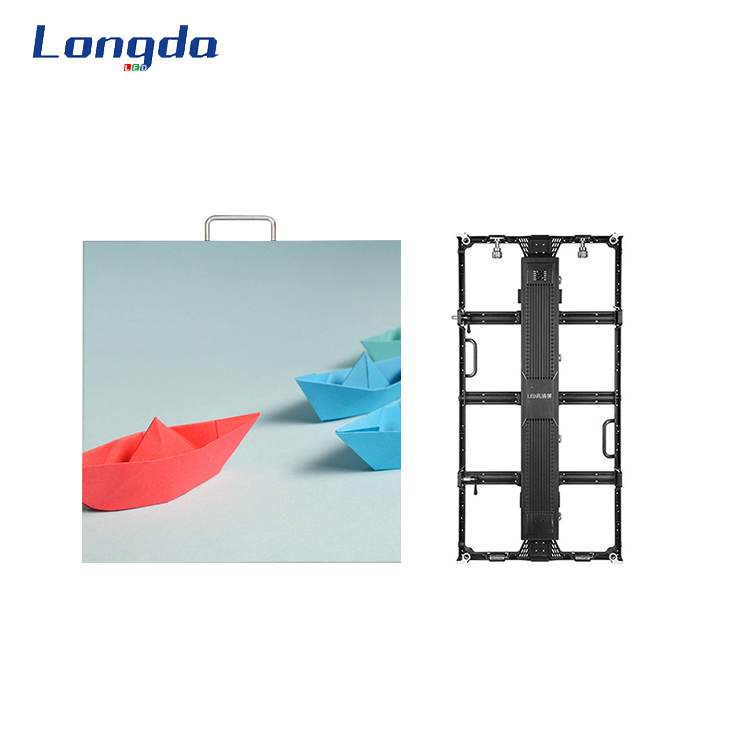

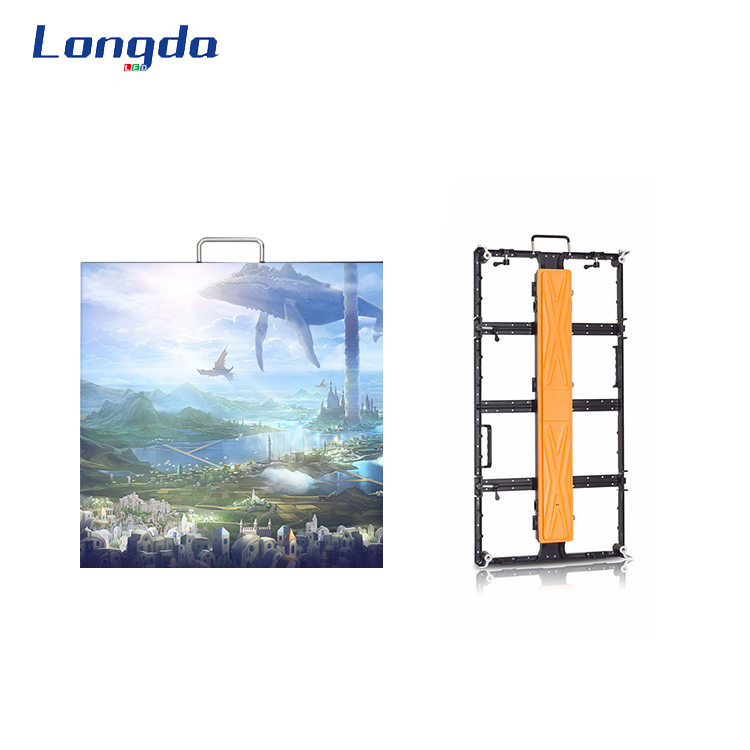

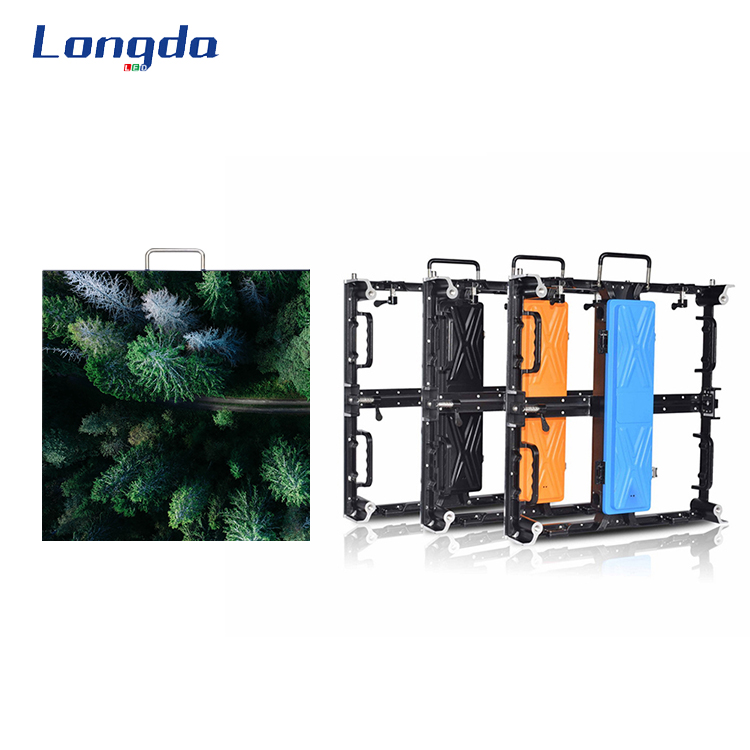

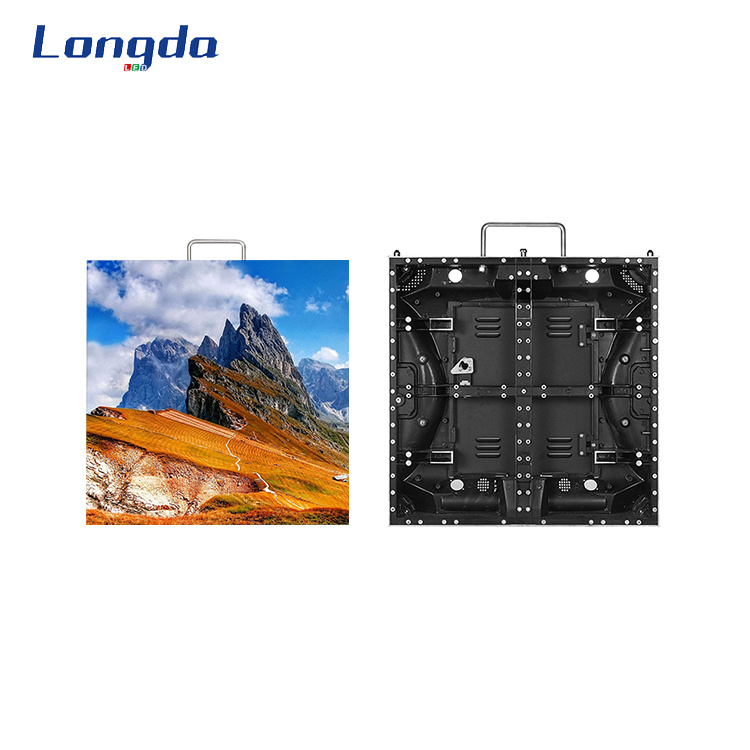

P6.25 indoor/outdoor led display is one of the widely used led display in the
market now, usually applied in commercial ads, stadium, stage rental......
Features:
1. High definition
| Indoor/Outdoor P6.25 led screen | |
| Physical parameters | |
| Pixel pitch | P6.25 |
| Physical density | 25600 dots/m2 |
| Led packing | SMD3535/3528 |
| LED composition | 1R1G1B |
| Cabinet size | 500x500mm/500x1000mm |
| Caninet weight | 6.5kg/12kg |
| Cabinet material | Die-casting aluminum/Iron |
| Optoelectronic parameters | |
| AC operation voltage | 100~120V/220~240V |
| Scan | 1/10 S |
| Brightness | indoor 3500cd/m2 ;outdoor1000cd/m2 |
| Gray level | 14 bit |
| View distance | 6~50m |
| View angle | 140 degree horizon/vertical |
| Refresh rate | ≥1920 |
| Life span | 100,000h |
| Frame frequency | ≥60Hz |
| IP rate | indoor IP30/outdoor IP65 |
