简介： P6 indoor led display is one of the widely used led display in the market now, usually applied in commercial ads, stadium, stage rental...... Features: 1. High definition 2. only5kglightweight 3. IP65 protection 4. frontmaintenancedesign 5. high cost performance, 30% cheaper. Indoor/OutdoorP6ledscreen ...
P6 indoor led display is one of the widely used led display in the
market now, usually applied in commercial ads, stadium, stage rental......
Features:
1. High definition

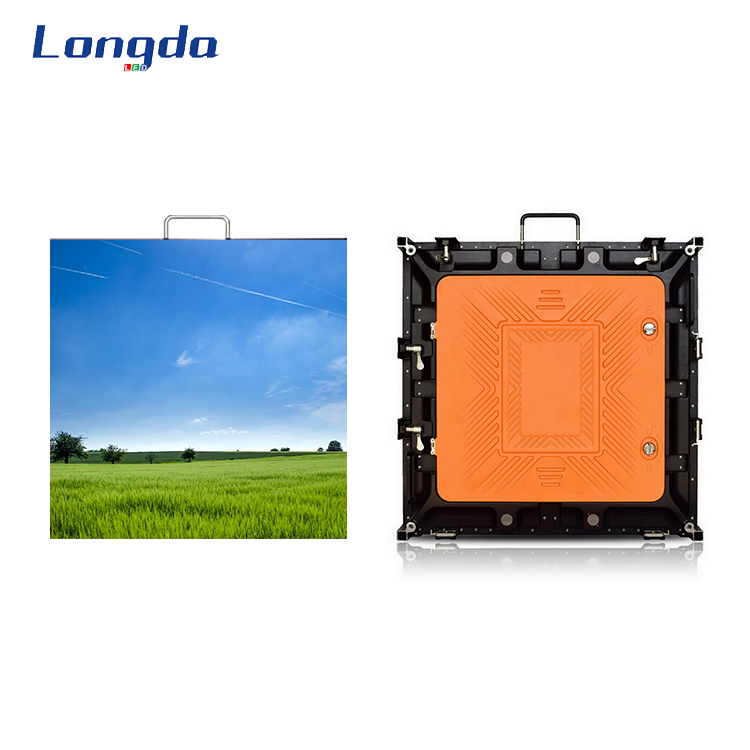

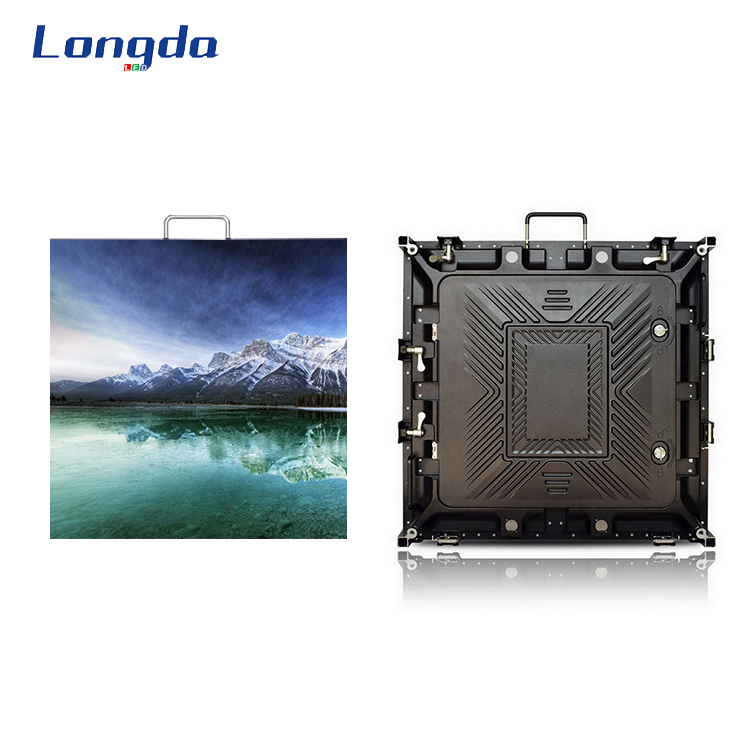

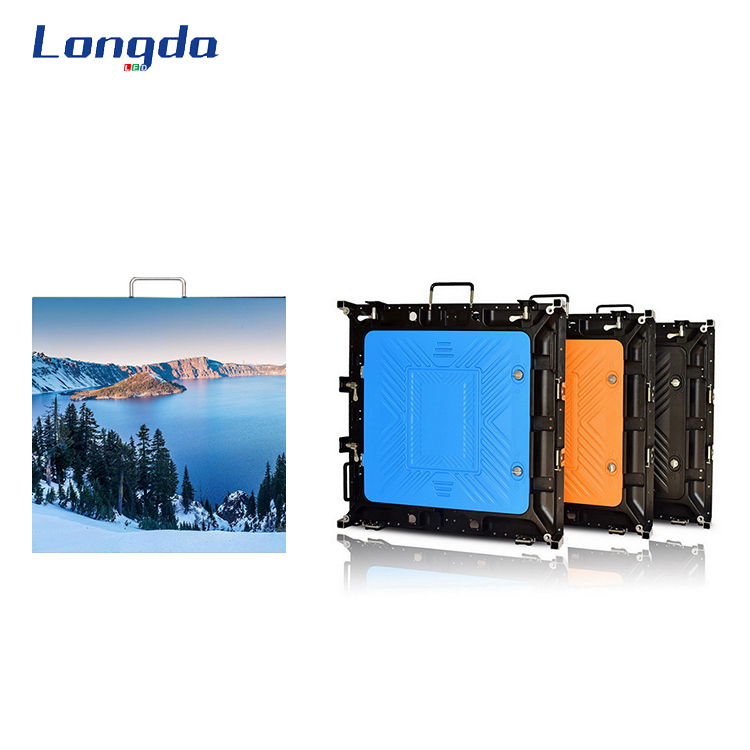

| Indoor/Outdoor P6 led screen | |
| Physical parameters: | |
| Pixel pitch | P6 |
| Physical density | 27777 dots/m2 |
| Led packing | Indoor SMD3528;Outdoor 3535 |
| LED composition | 1R1G1B |
| Cabinet size | 576x576mm/960x960mm |
| Caninet weight | 7.5kg/28kg |
| Cabinet material | Die-casting aluminum/Iron |
| Optoelectronic parameters | |
| AC operation voltage | 100~120V/220~240V |
| Scan | Indoor 1/16S;Outdoor 1/8 S |
| Brightness | indoor 860cd/m2;outdoor 5500cd/m2 |
| Gray level | 14 bit |
| View distance | 6~50m |
| View angle | 140 degree horizon/vertical |
| Refresh rate | ≥1920 |
| Life span | 100,000h |
| Frame frequency | ≥60Hz |
| IP rate | indoor IP 30/outdoor IP65 |
