简介： Super slim design outdoor fixed installation led display p10 for sports is one of the widely used led display in themarket now, usually applied in commercial ads, stadium, stage rental...... Features: 1. High definition 2. IP65 protection 3. frontmaintenancedesign 4. high cost performance, 30% cheaper. OutdoorP10ledscreen ...

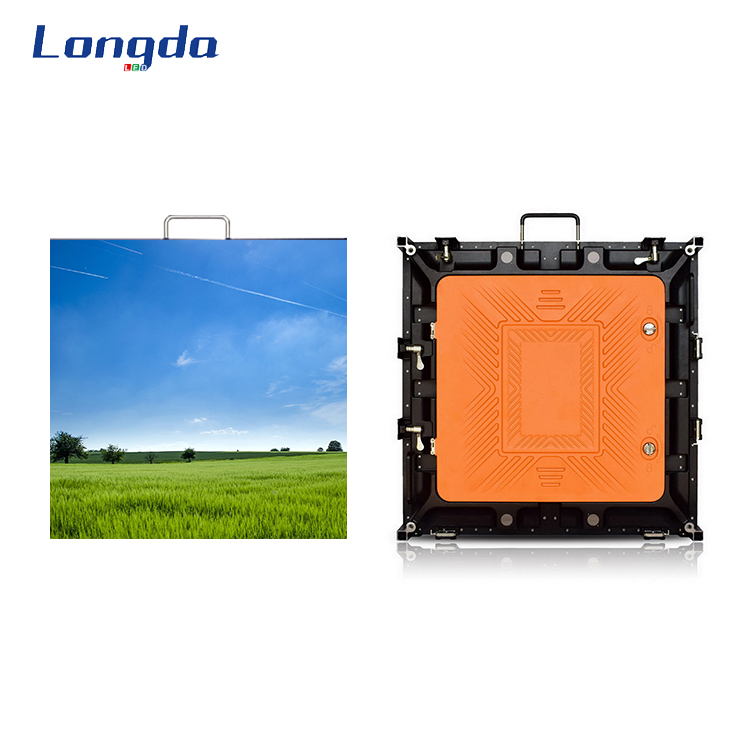

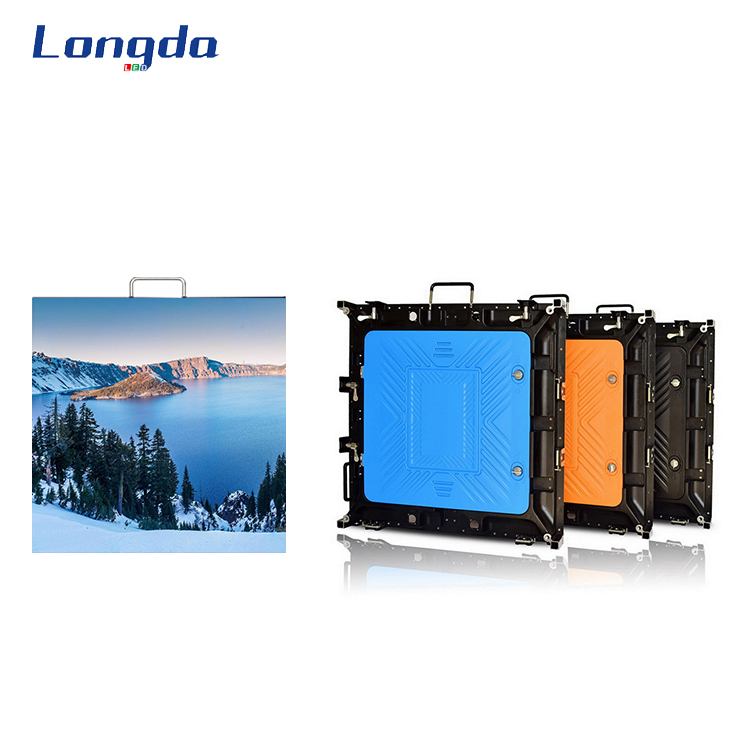

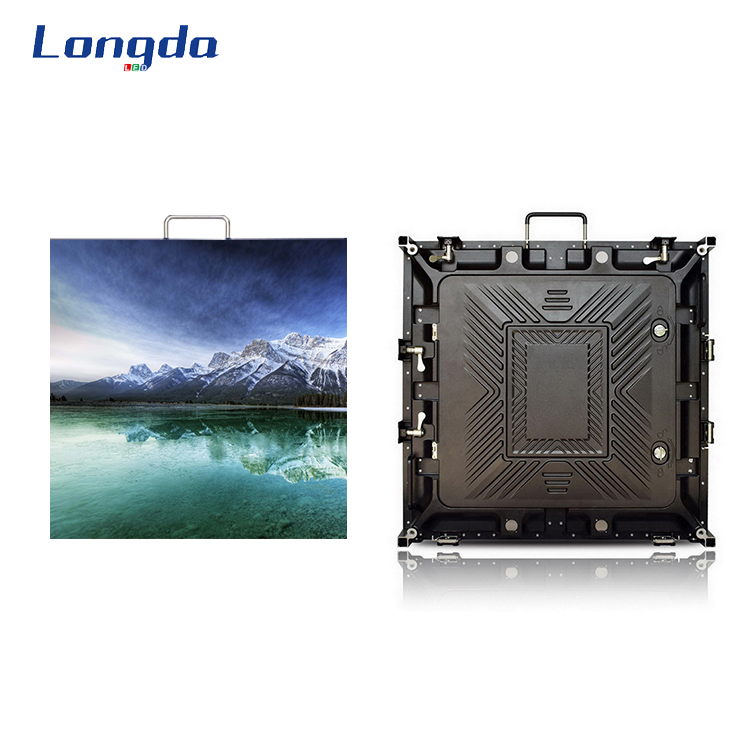

Super slim design outdoor fixed installation led display p10 for sports is one of the widely used led display in the market now, usually applied in commercial ads, stadium, stage rental......
Features:
1. High definition
| Outdoor P10 led screen | |
| Physical parameters | |
| Pixel pitch | P10 |
| Physical density | 10000 dots/m2 |
| Led packing | SMD3535 |
| LED composition | 1R1G1B |
| Cabinet size | 640x640mm/960x960mm |
| Caninet weight | 12kg/28kg |
| Cabinet material | Die-casting aluminum/Iron |
| Optoelectronic parameters | |
| AC operation voltage | 100~120V/220~240V |
| Scan | 1/5 S |
| Brightness | 8000cd/m2 |
| Gray level | 14 bit |
| Color temperature | 7500K |
| View distance | 6~50m |
| View angel | 140 degree horizon/vertical |
| Refresh rate | ≥1920 |
| Life span | 100,000h |
| Frame frequency | ≥60Hz |
| IP rate | outdoor IP65 |
