类别：固装系列
简介： P4 indoor/outdoor led display is one of the widely used led display in the market now, usually applied in commercial ads, stadium, stage rental...... Features: 1. High definition 2. only5kglightweight 3. IP30 protection 4. frontmaintenancedesign 5. high cost performance, 30% cheaper. Indoor/Outdoor P4ledscreen Physicalpar...

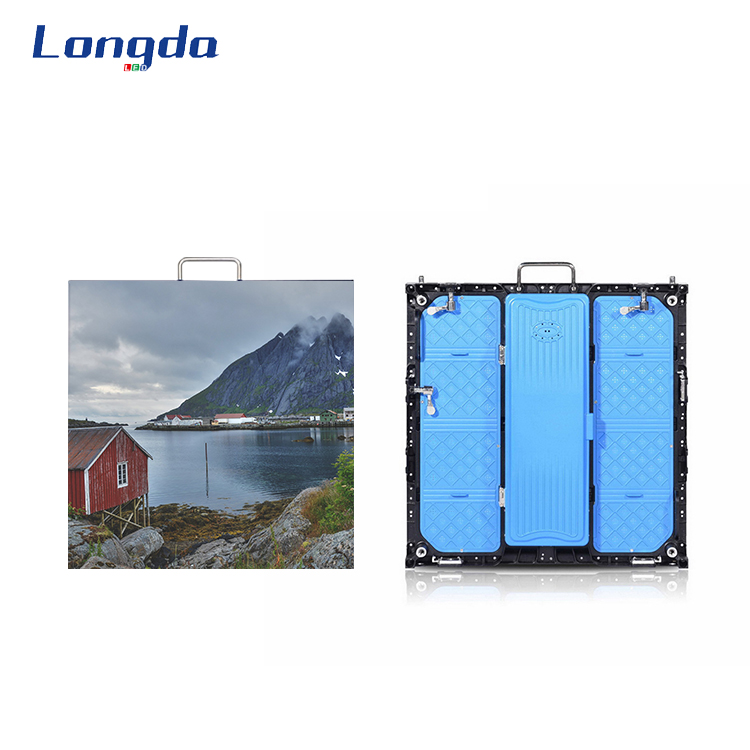

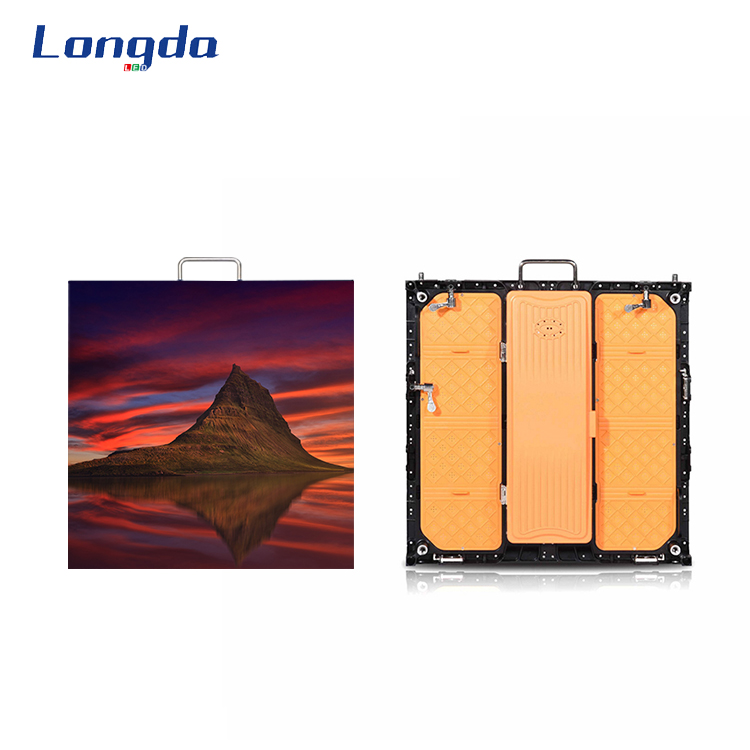

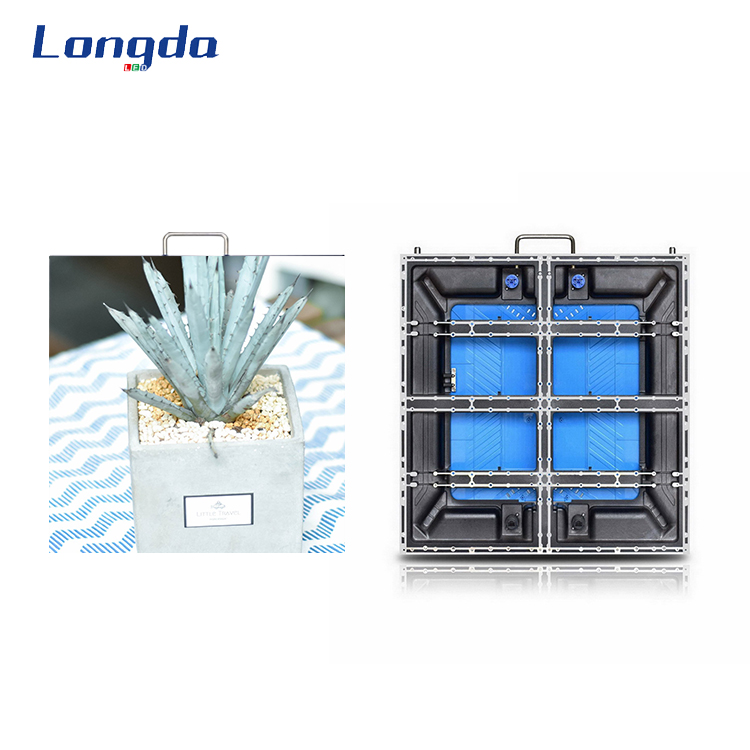

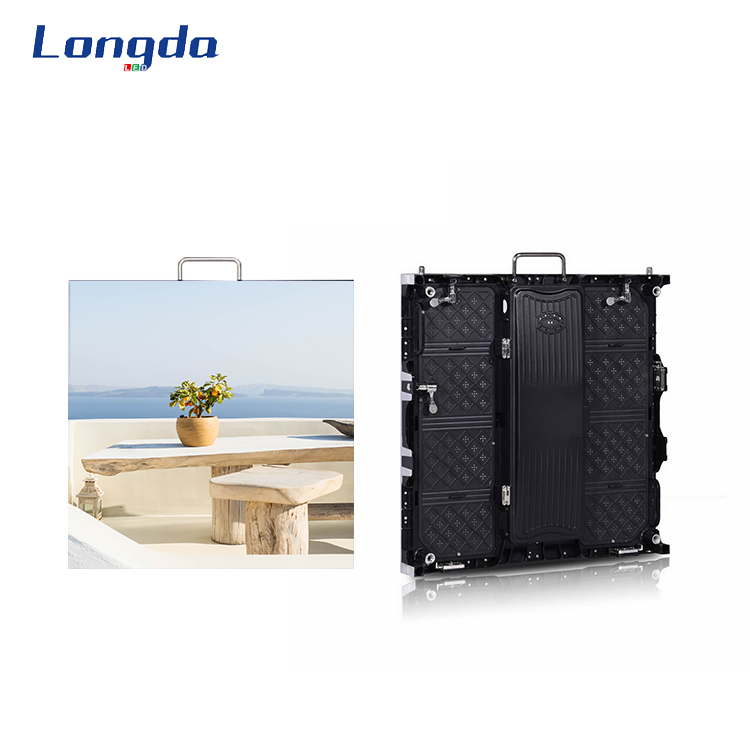

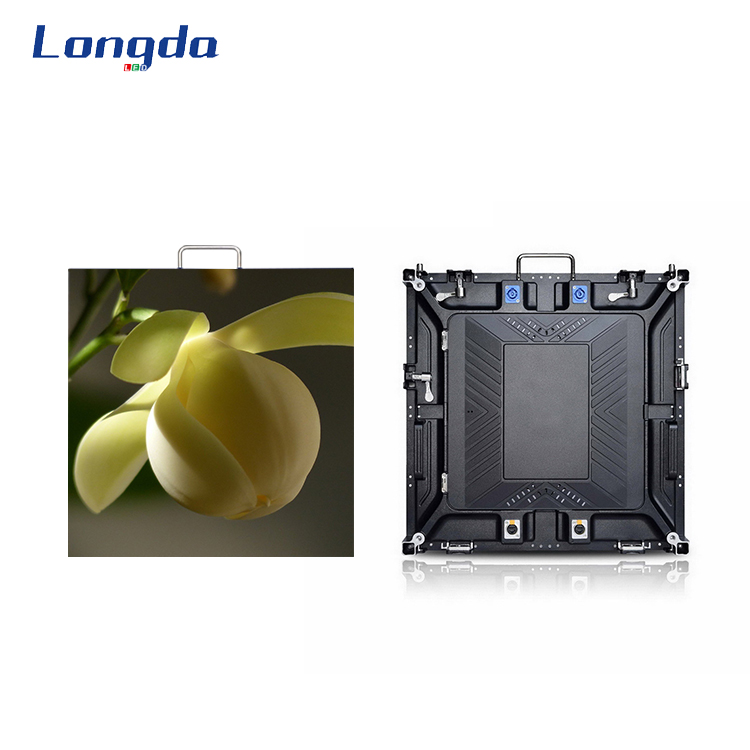

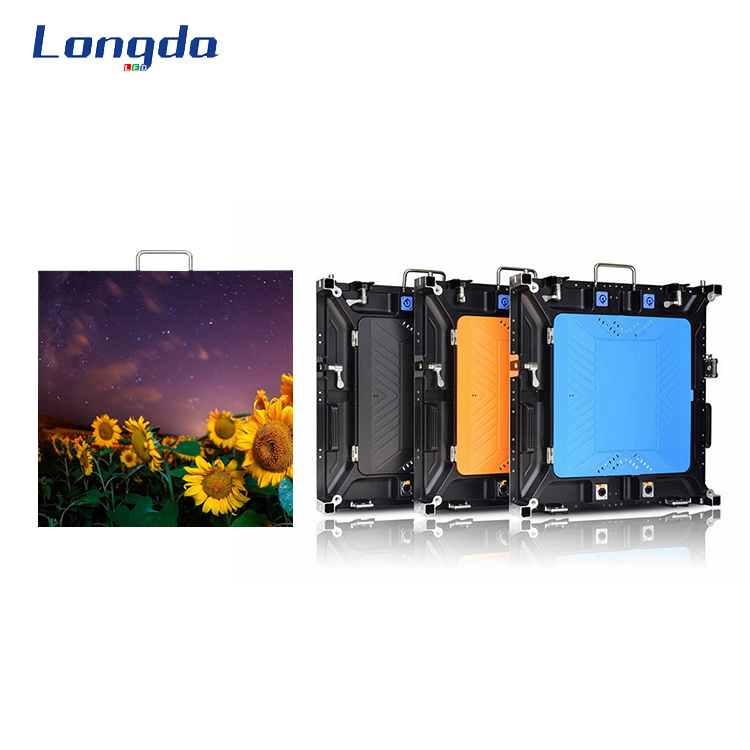

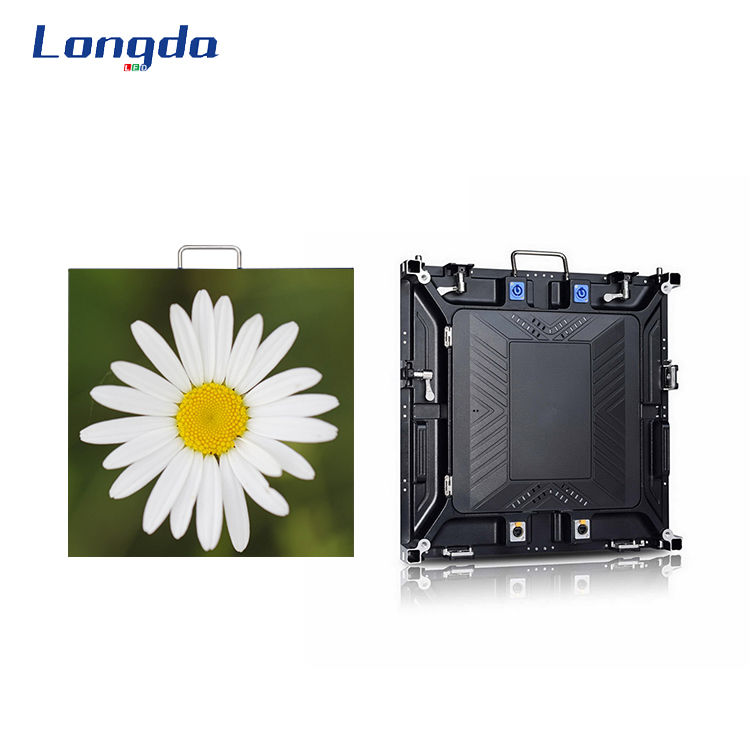

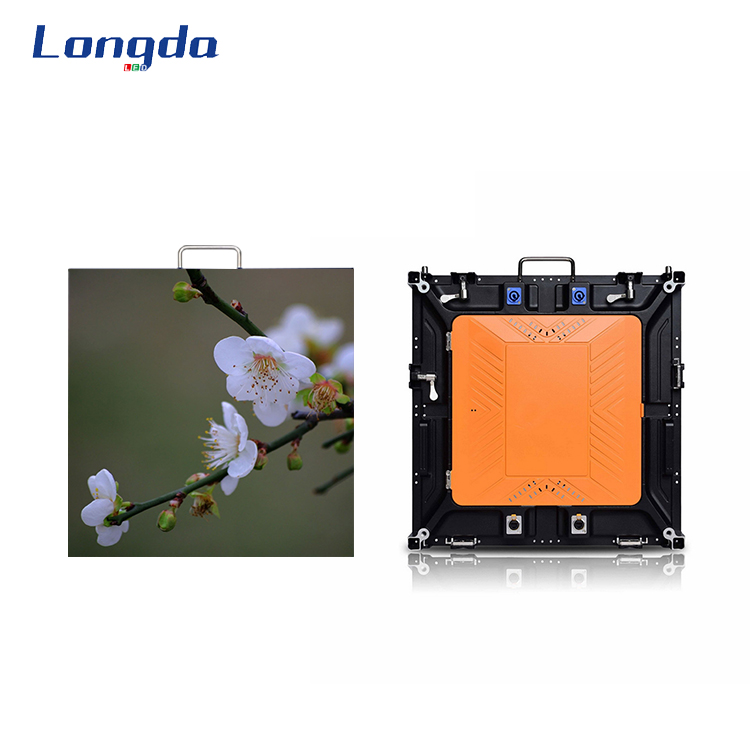

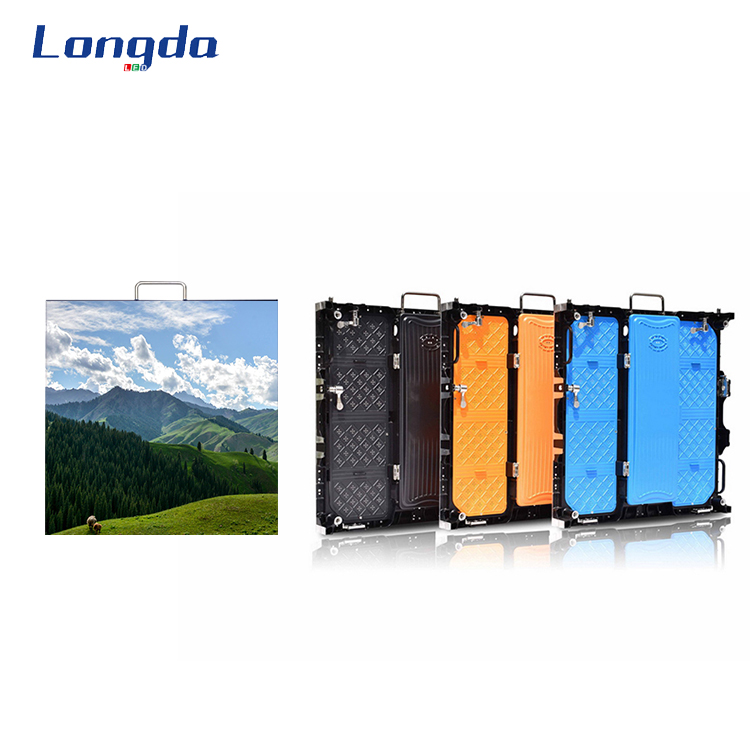

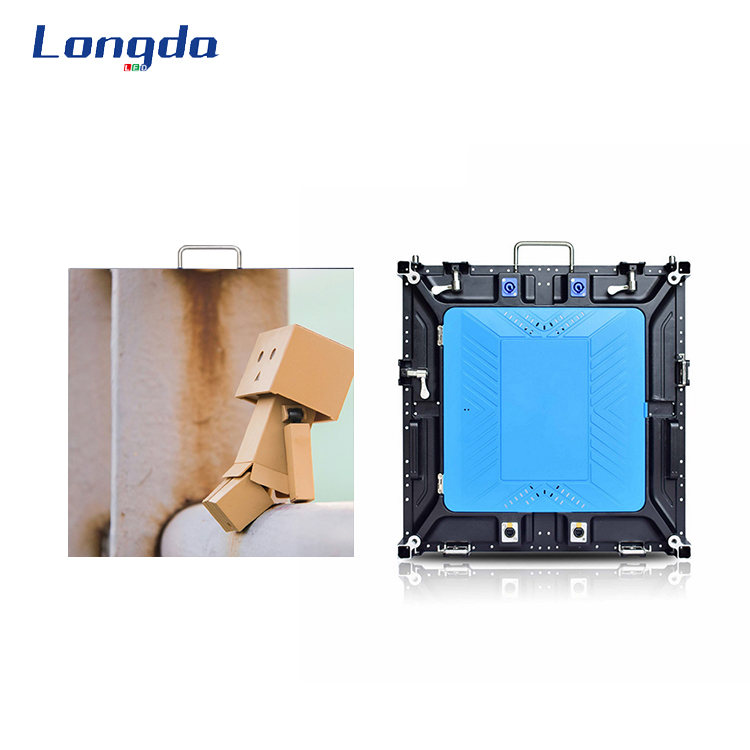

P4 indoor/outdoor led display is one of the widely used led display in the
market now, usually applied in commercial ads, stadium, stage rental......
Features:
1. High definition
| Indoor/Outdoor P4 led screen | |
| Physical parameters: | |
| Pixel pitch: | P4 |
| Physical density: | 62500 dots/m2 |
| Led packing: | SMD2121 |
| LED composition: | 1R1G1B |
| Cabinet size: | 512x512mm/1024x1024mm |
| Caninet weight: | 7 kg/20kg |
| Cabinet material: | Die-casting aluminum/Iron |
| Optoelectronic parameters: | |
| AC operation voltage: | 100~120V/220~240V |
| Scan: | 1/16S |
| Brightness: | 1000cd/m2 |
| Gray level: | 14 bit |
| View distance: | 4~40m |
| View angle: | 140 degree horizon/vertical |
| Refresh rate: | ≥1920 |
| Life span: | 100,000h |
| Frame frequency: | ≥60Hz |
| IP rate: | IP30 |
